Hipped Roof Lantern
Raised, four-sided hip · Made to measure
The standard lantern for a flat roof extension. Slim bars, 60mm ridge.
Roof lanterns and rooflights, made to measure to your kerb
Hipped and pyramid lanterns, and flat, opening, large and walk-on rooflights, for builders and roofers. Everything is sized to the outside of the kerb you build. Send that size and we confirm what lands on it.
Order forms for this rangeSix roof glazing products
All made to measure around the outside size of the kerb. Lanterns are slim aluminium with a 60mm ridge; rooflights are one glass unit on a kerb.

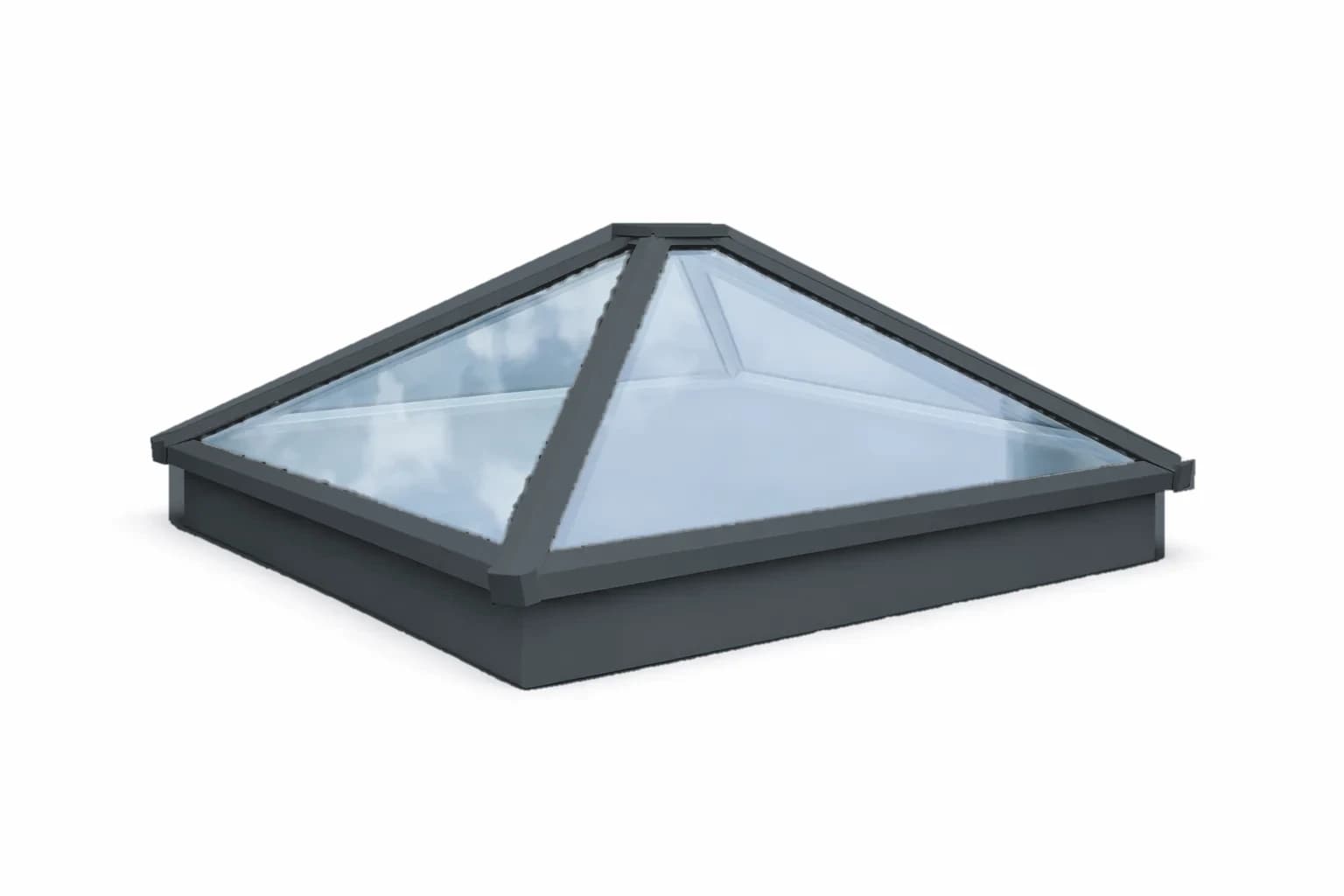

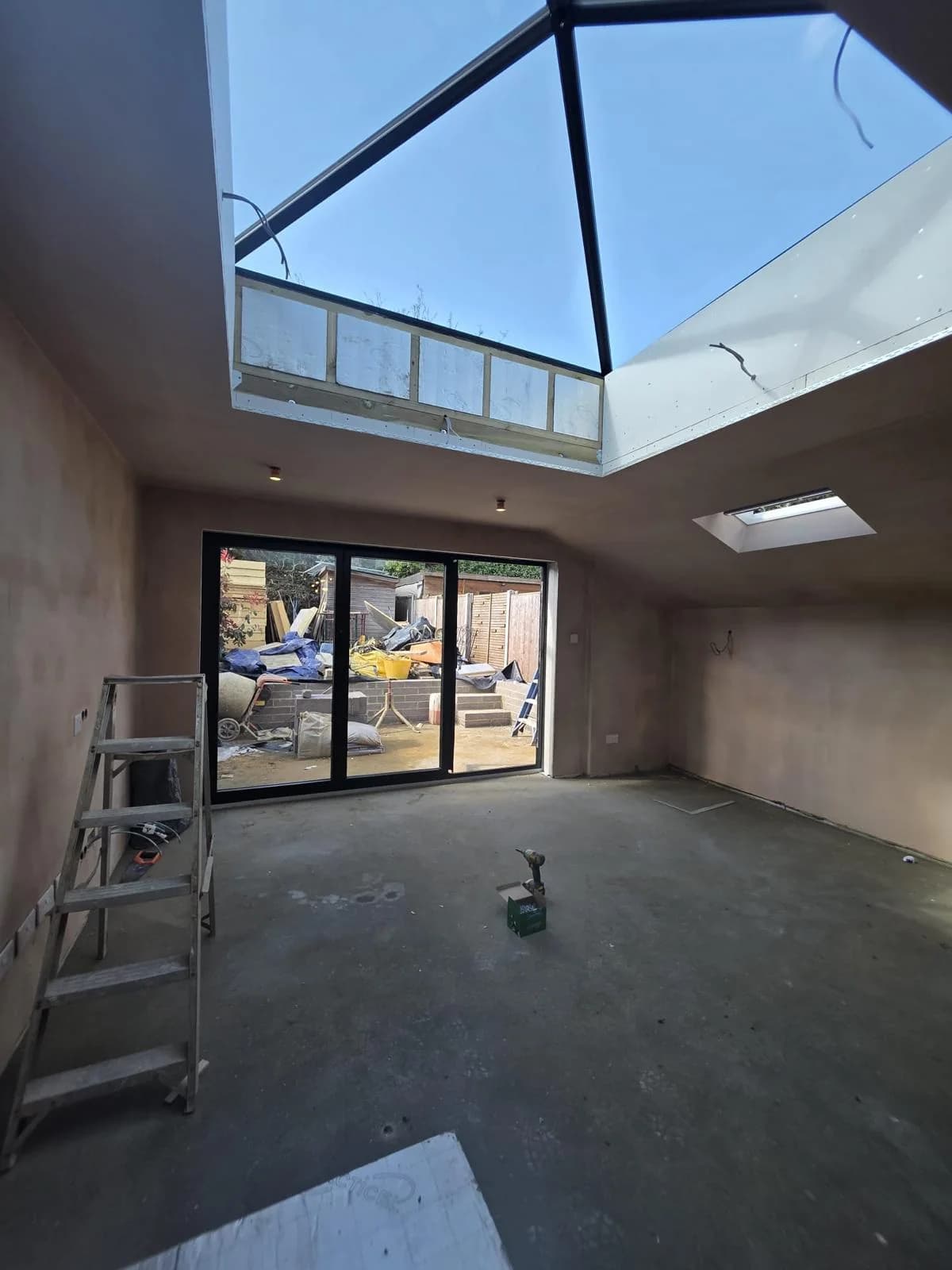

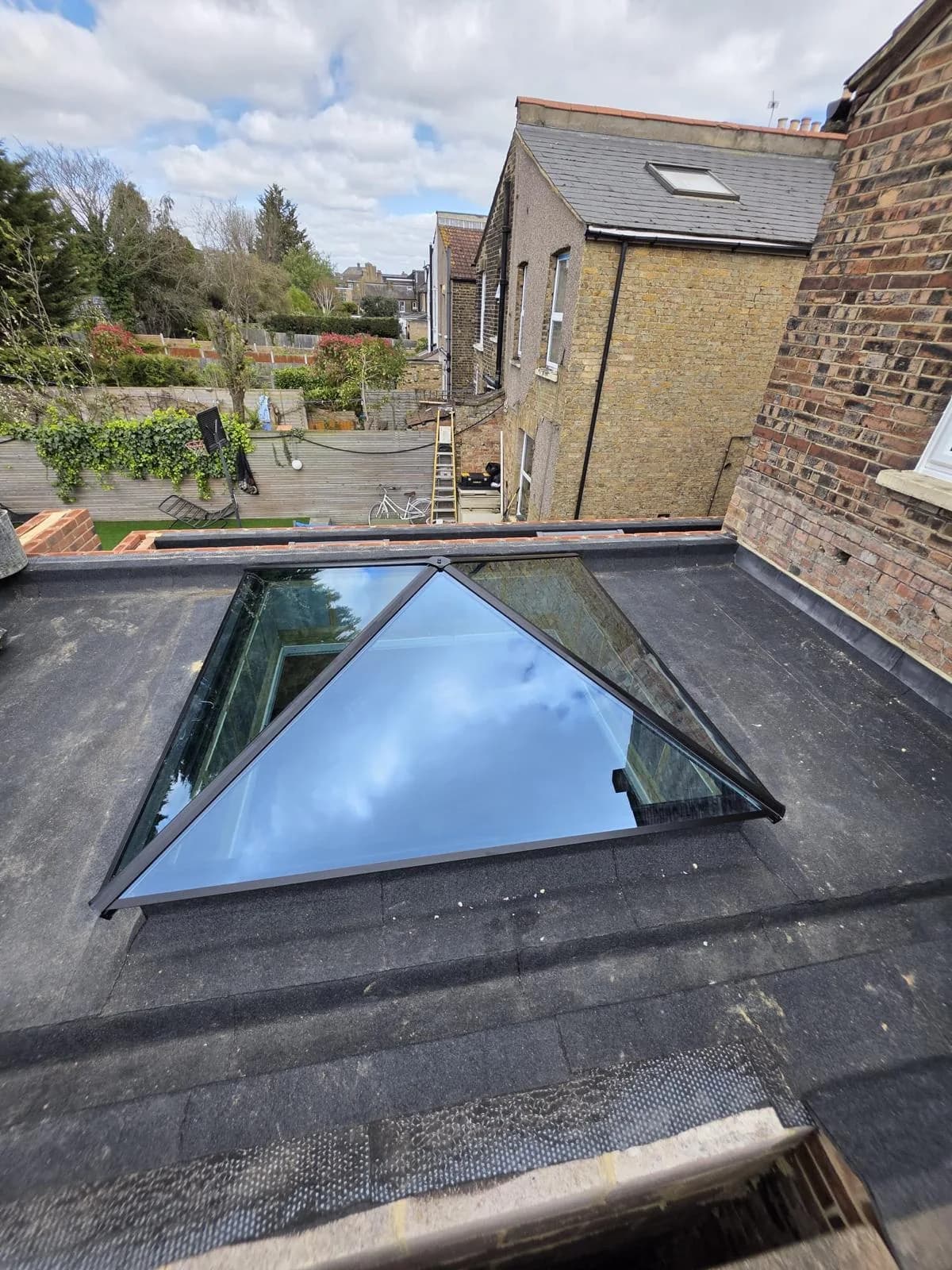

Pyramid Roof Lantern
Raised, square, central point · Made to measure
For square openings. Guide sizes 500 to 2,500mm square.
Flat Rooflight
Fixed, low profile · Made to measure
One fixed glass unit on a kerb. An electric blind can go inside the glass.
Opening Rooflight
Flat rooflight that opens · Made to measure
Electric opening on a wall switch, with rain sensor and thermostat options.
Large Skylight
Flat, wider spread of glass · Made to measure
Wider spans in several panes, with support detail quoted per project.
Walk-On Rooflight
Flat, you can walk on it · Made to measure
For terraces and roof decks. Glass build-up and support quoted per project.
Kerb and upstand
Lanterns and rooflights are sized to the outside of the kerb, not the hole in the ceiling. The first numbers we need are the outside length and width of the kerb you are building, its height, and the roof fall. Timber or masonry, insulated, with the vapour control carried up it and the roof covering lapped over the top.
Glass never sits straight on the roof covering. Even a low-profile rooflight sits on a kerb, because the upstand is what keeps the water out. It is the detail that gets missed when a rooflight is ordered from a plan.
Electric vents, opening rooflights and blinds need a cable route before the roof is closed, so get the electrician on the plan early.
Colours
Five powder-coated colours for the quickest lead time. Any other RAL colour to order, to match the roof or the room.
- Anthracite Grey RAL 7016
- Black RAL 9005
- White RAL 9003
- Agate Grey
- Brown
Two-tone
Two-tone on request: a dark outside with a white inside is the usual ask. Confirmed on the quote.
- Anthracite Grey outside
White inside - Black outside
White inside
Glass
Self-cleaning outer pane, argon filled, warm edge spacer and toughened safety glass as standard on every unit.
Double glazed, 24mm
The standard unit. Glass U-value 1.2 W/m²K.
Triple glazed, 36mm
The upgrade for bigger lanterns and rooms that need to stay warmer. Glass U-value 0.7 W/m²K.
Solar control tints
Cuts glare and heat on south-facing roofs. The figure is how much of the sun's heat the double glazed unit reflects.
- Clear60%
- Blue60%
- Neutral Grey60%
- Bronze52%
Vents, openers and blinds
What each product can take. Anything electric needs power to the kerb before the roof is finished.
| Product | Opening | Integral blind |
|---|---|---|
| Hipped Roof Lantern | Fixed, or a manual or electric vent. Electric vents can add a rain sensor, thermostat and remote. | No |
| Pyramid Roof Lantern | Fixed, or a manual or electric vent. Position confirmed per lantern. | No |
| Flat Rooflight | Fixed | Electric, white slats, remote control |
| Opening Rooflight | Electric, on a wall switch. Rain sensor and thermostat options. | Electric, white slats, remote control |
| Large Skylight | Fixed | No |
| Walk-On Rooflight | Fixed | No |
Roof blinds only go in flat rooflights. They are not offered on lanterns or any sloping glass.
From kerb size to lantern on the roof
- 1
Send the kerb
Product, outside kerb length and width, kerb height, roof fall, colour, glass, vent or blind, and access for delivery.
- 2
We confirm the unit
Size against the kerb, glass build-up and weight, vent and blind wiring, lifting and access, in writing.
- 3
Order and lead time
Stock colours are quickest. Other RAL colours, vents and blinds add time, stated on the quote and held.
- 4
Collect or deliver
Lanterns come as a kit of bars, ridge and glass; rooflights as one unit. We tell you how many people the largest pane needs. Collect from Danes Road, Romford, Mon to Thu 8am to 4pm and Fri 8am to 3pm, with job-waste drop-off included. Local delivery is available subject to order value and location.
Building Regulations
Part L for new roof glazing, Part K safety glazing, Part B for roof openings near boundaries, and a structural check on the kerb and roof.
Cii trade portal
Size the lantern on screen
Configure size, colour and vent in 3D, quote from it, and keep the roof forms with the job. Free for one user.
Send sizes, get a written quote
Tell us what you fit and what the job needs. The trade desk confirms the specification before anything is ordered.
