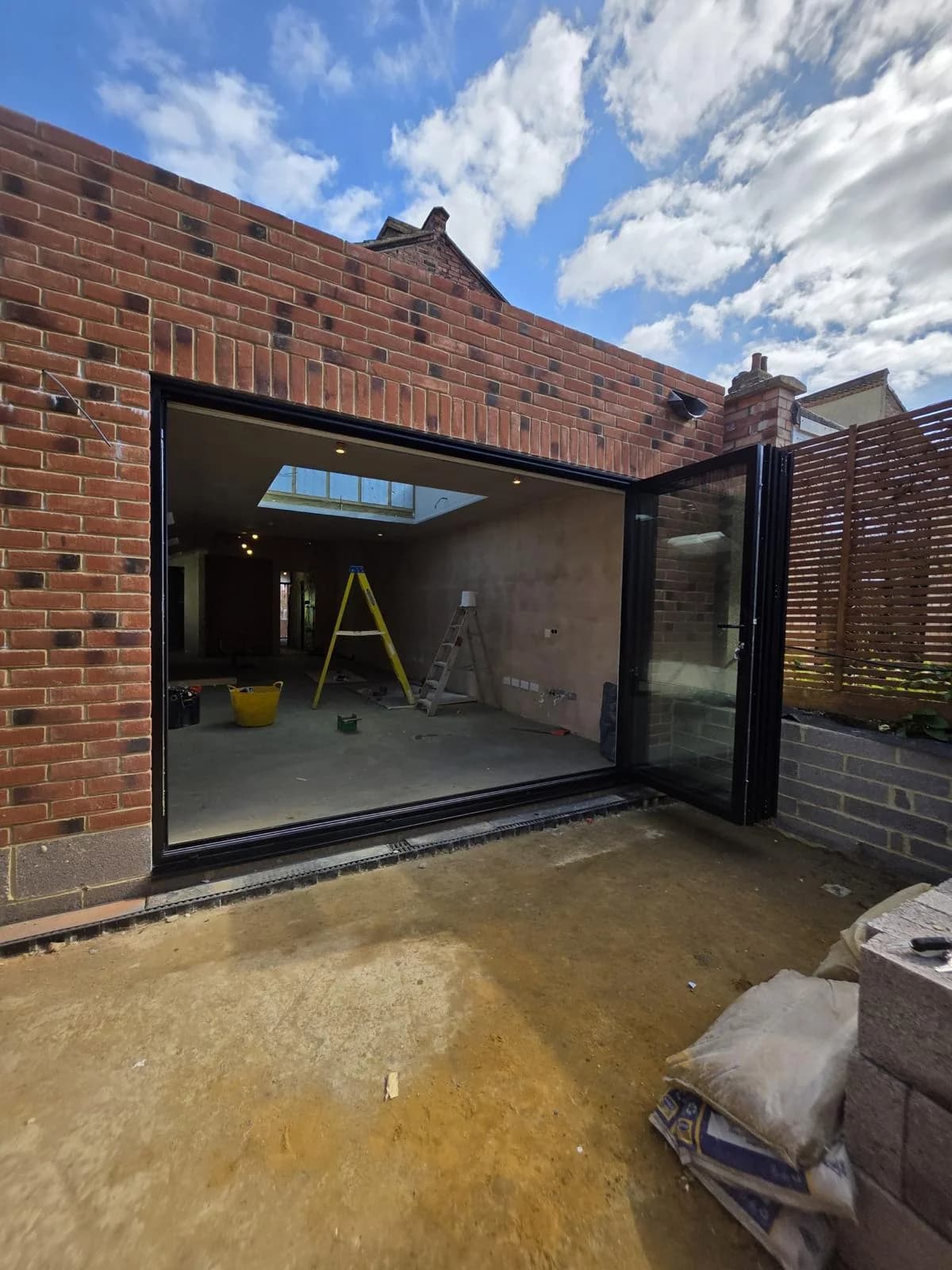

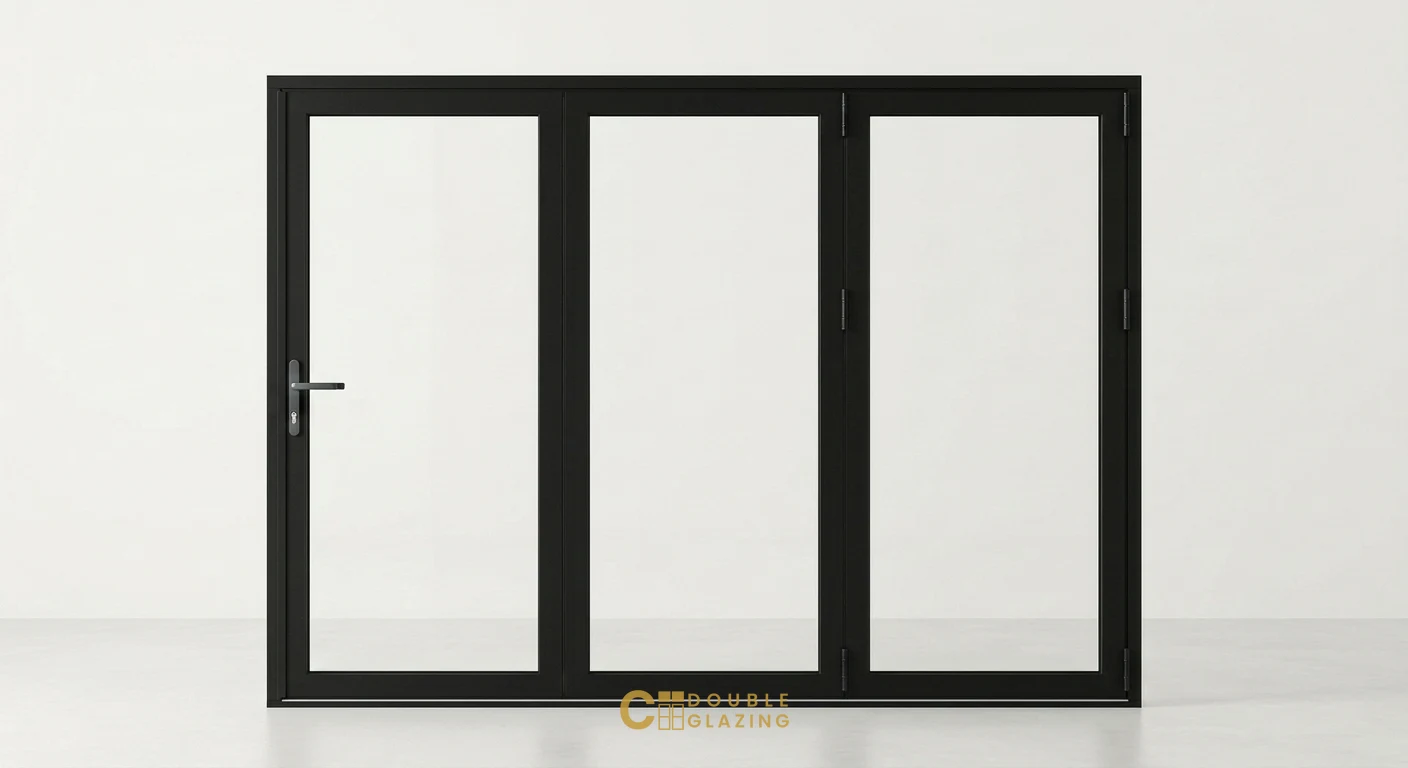

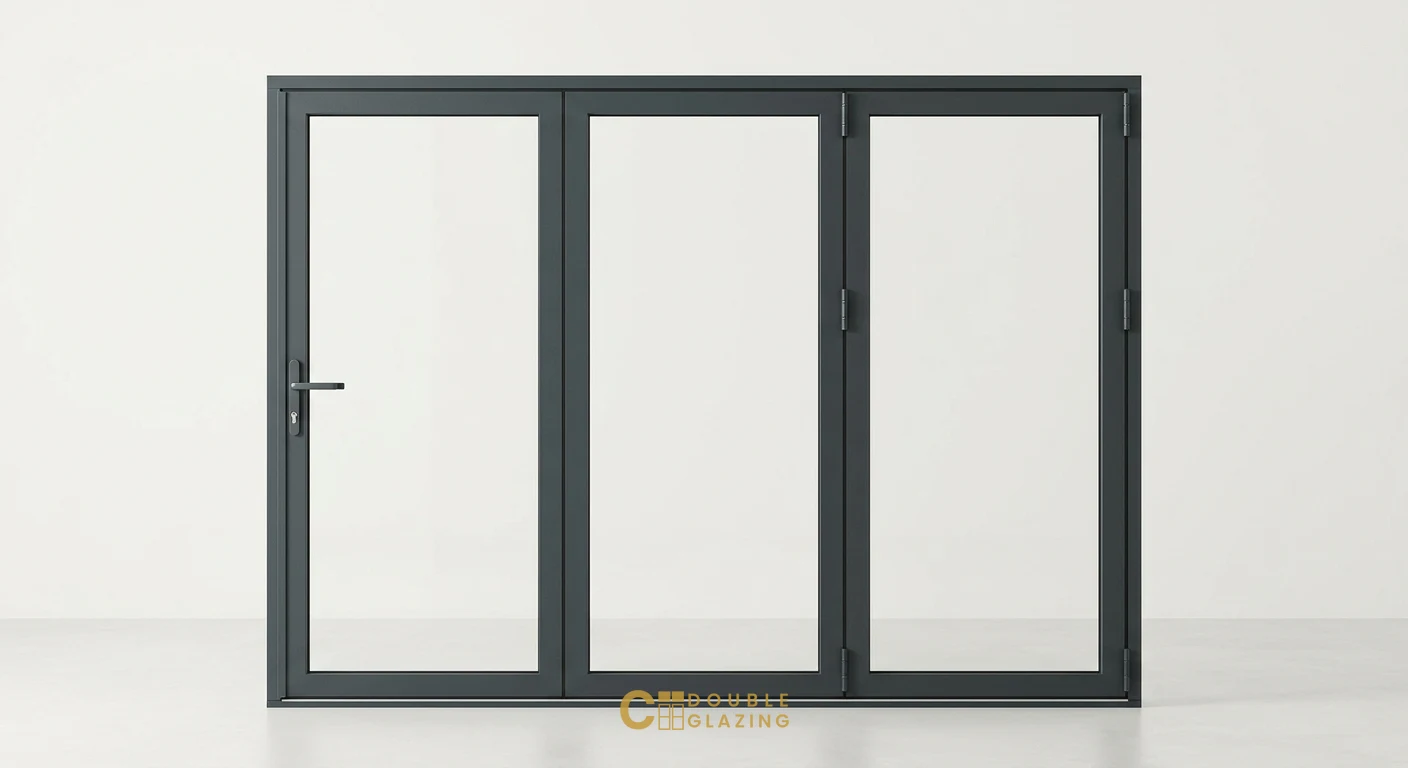

Aluminium bi-fold
AluK BSF70 HI · Arkay Windows
2 to 6 panels, fold left, right or split, open in or out.
Bi-folds and sliders in AluK, Cortizo and Liniar, made to measure
Aluminium and uPVC bi-folds, aluminium and uPVC sliding patio doors. Send the opening, the panel count and which way it folds. Cii checks the panel sizes, the main door and the threshold with you before anything is ordered.
Order forms for this range
Six systems
Two aluminium bi-folds, one uPVC bi-fold, two aluminium sliders and one uPVC slider. Named by system, because that is how the opening gets specified.
Aluminium bi-fold, alternative
Cortizo · A&Y Bifold Doors
Stated 7 to 10 day turnaround on the Cortizo system.

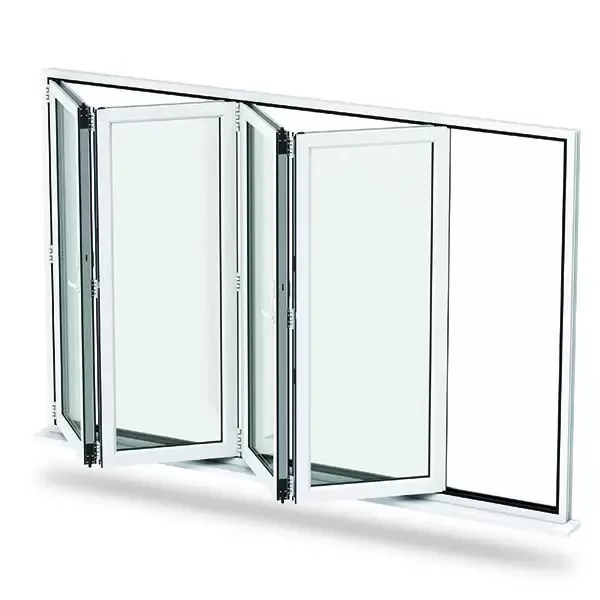

uPVC bi-fold
Liniar bi-fold · TrueFrame
White or Liniar foils. Four threshold options, including Part M.

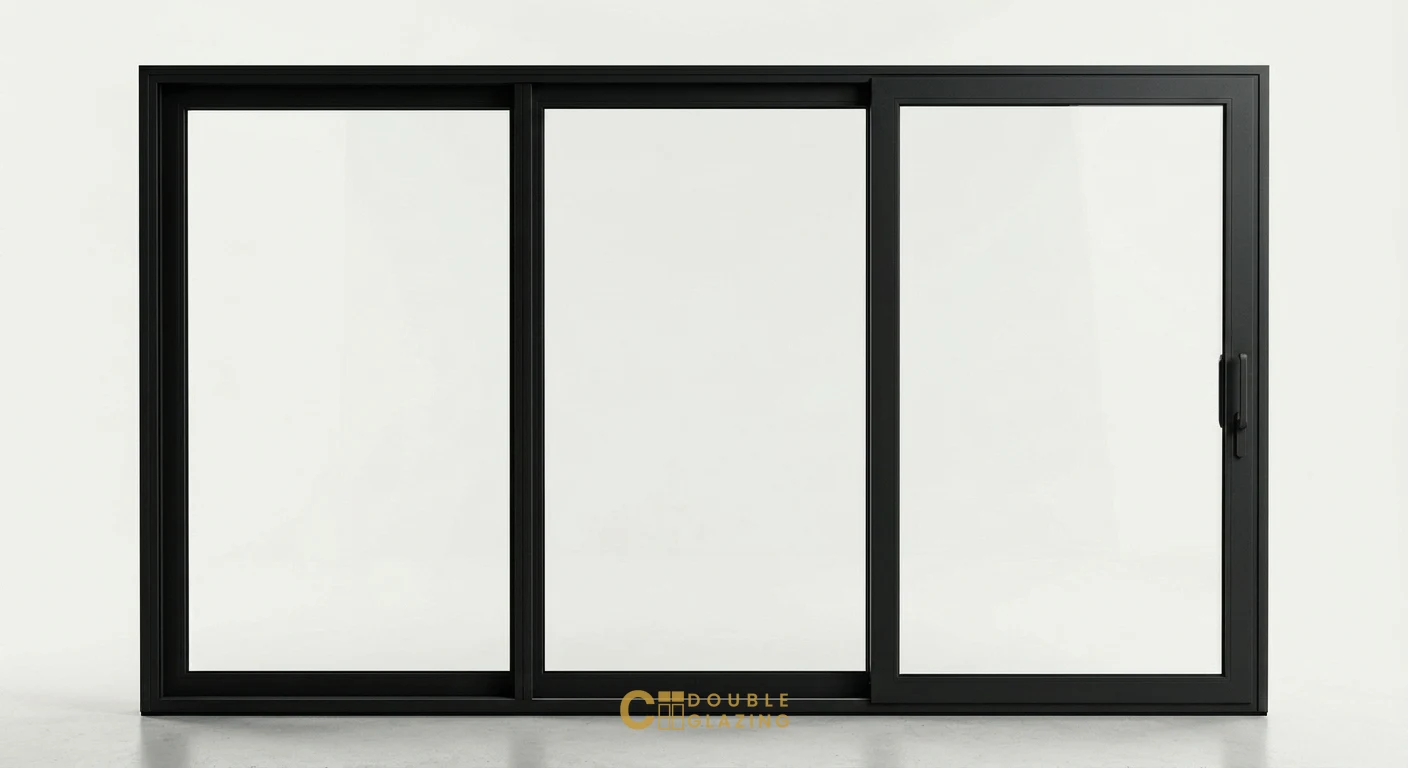

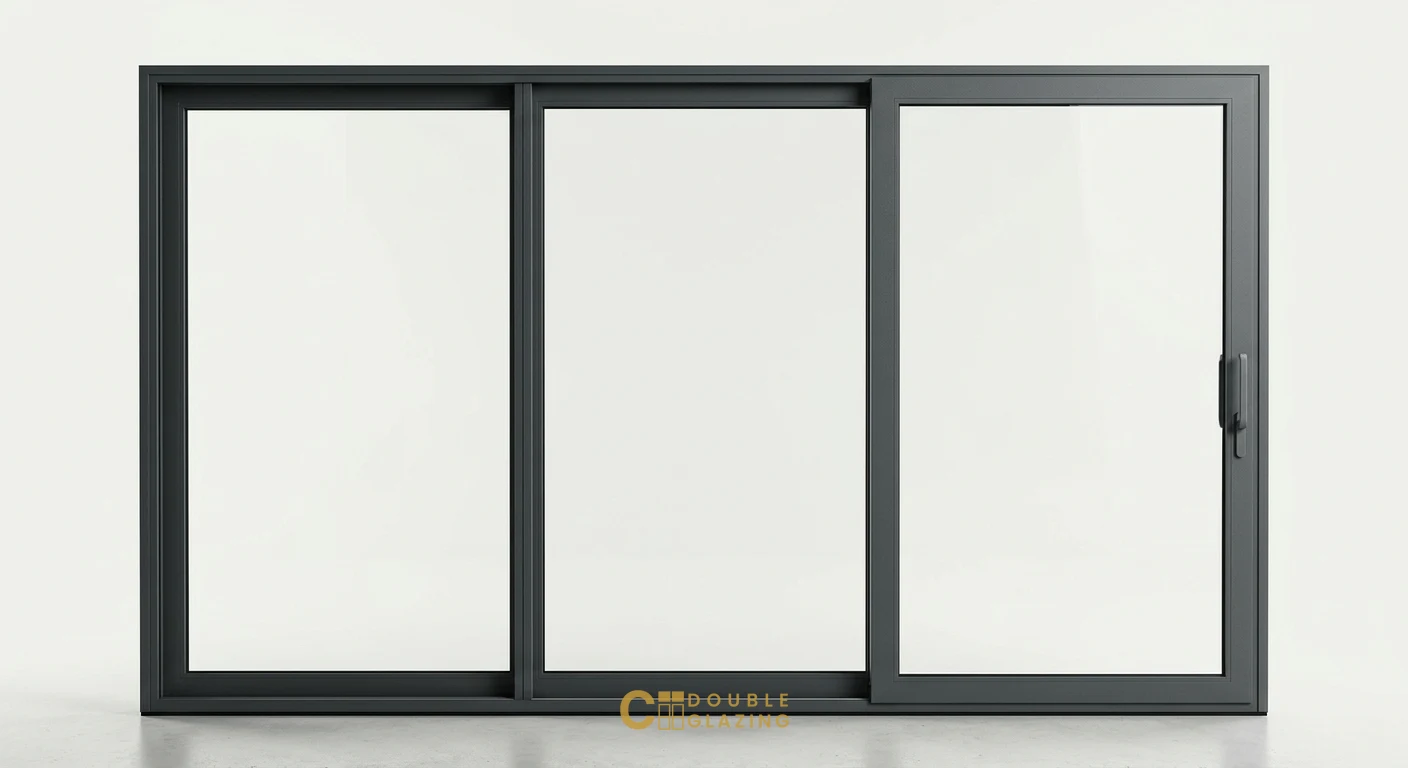

Aluminium sliding patio
EdgeGLIDE+ dual and triple track · Arkay Windows
2, 3 and 4 panels on two or three tracks.
Aluminium slimline slider
AluK BSC94 · Arkay Windows
Slim interlock for more glass. Threshold and track heights confirmed per project.

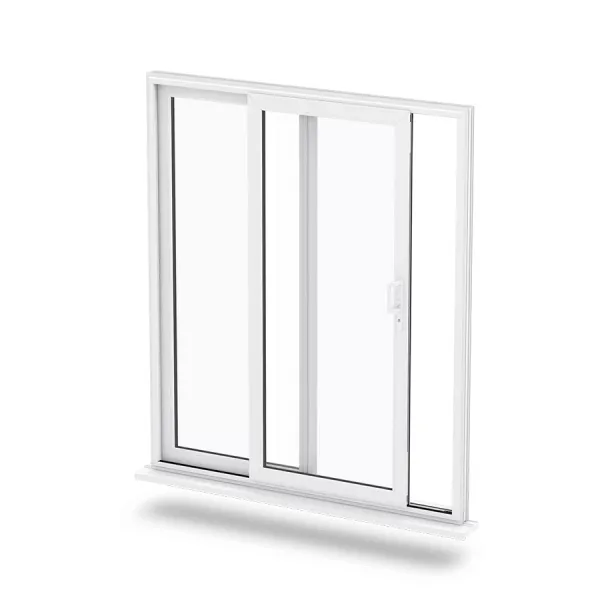

uPVC sliding patio
Liniar Eurogroove patio · TrueFrame
2, 3 and 4 panels, inline sliding.

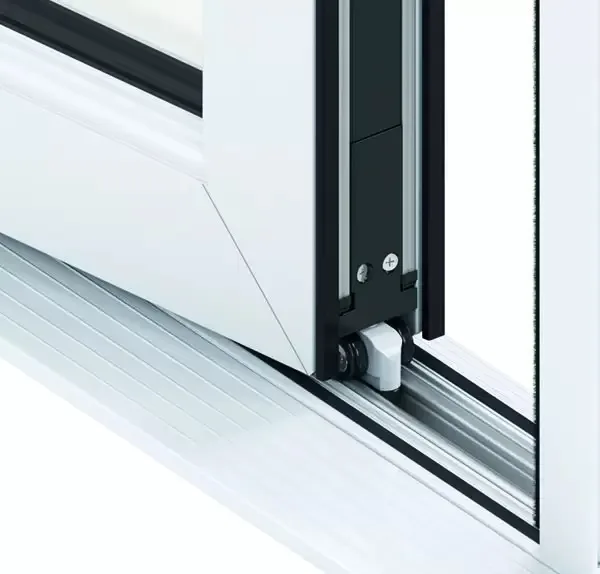

Threshold heights
Measured from the finished floor outside to the top of the threshold. Each system has set heights; there are no custom ones.
| System | Standard | Low | Part M |
|---|---|---|---|
| AluK BSF70 HI aluminium bi-fold | 54mm | 34mm | 34mm low threshold, for level access |
| Liniar uPVC bi-fold | 86mm with frame and cill, 56mm frame only | 27mm with LAN272 threshold and LAN275 drainage tray | 24mm |
| Sliders | Confirmed per project | Confirmed per project | Confirmed per project |
A low threshold needs a drainage tray or a step down outside. Decide it before the floor or patio goes down, not after.
Panels and opening
Bi-folds come in 2 to 6 panels, each up to about 1,100mm wide and 2,100mm high. Any split is possible: fold left, fold right, or split both ways. They open out as standard and open in on request. The main door is the one you walk through day to day without folding the rest.
Sliders come as 2 panels with the left or right one moving, 3 panels, or 4 panels opening from the centre.
Send the glass spec with the sizes. Heavier glass needs stronger hinges and rollers, so we check the glass before confirming panel widths.
Colours
White, Anthracite Grey and Black are the usual three. Aluminium comes in any RAL colour, matt or gloss. uPVC takes the Liniar foils on the windows page.

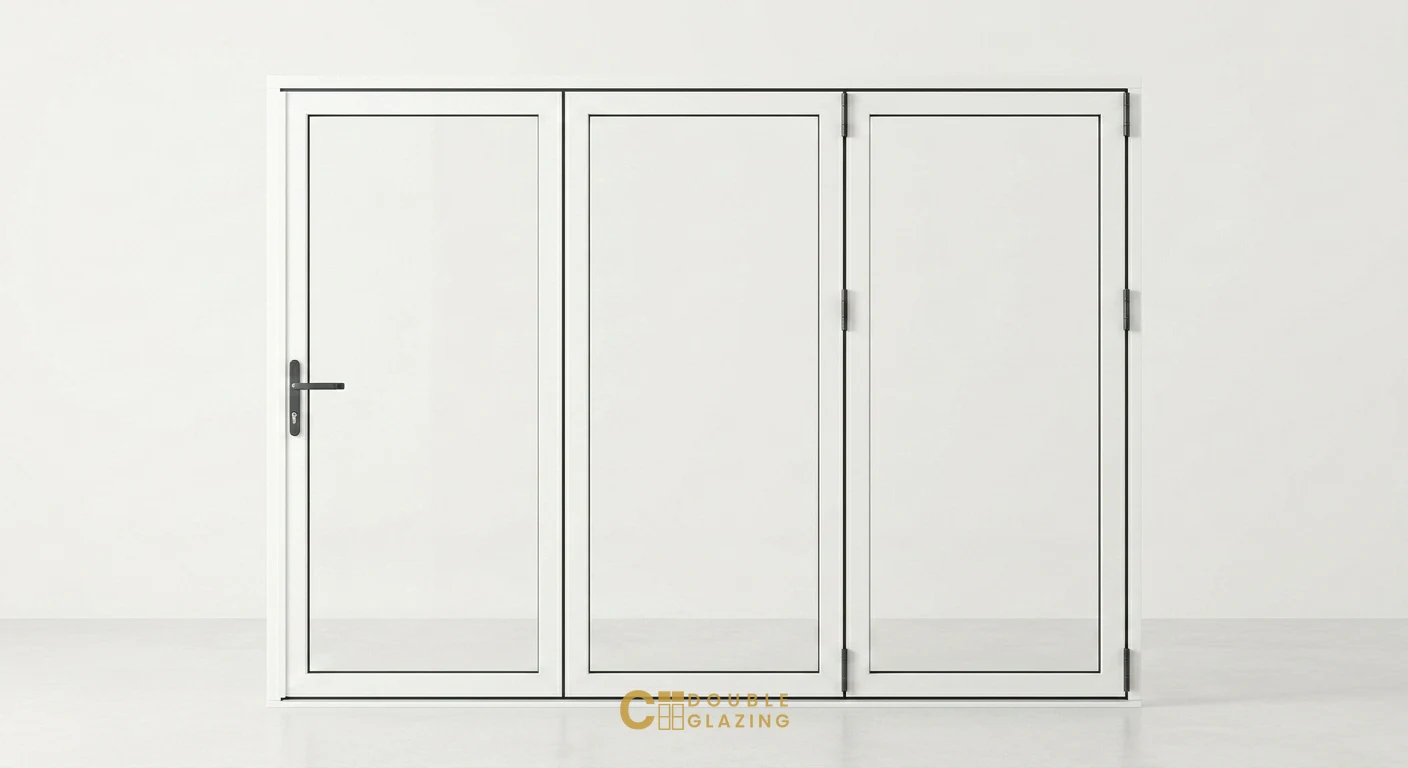

- White
- Anthracite Grey
- Black
- White
- Anthracite Grey
- Graphite Black
- Agate Grey
- Basalt Grey
Two-tone
Aluminium can be one colour outside and another inside. A dark outside with a white inside is the most common. uPVC comes as colour outside on a white inside, or colour both sides.
- Anthracite Grey outside
White inside - Black outside
White inside - White outside
Black inside - White outside
Anthracite Grey inside - Anthracite Grey outside
Black inside - Black outside
Anthracite Grey inside
Handle finishes

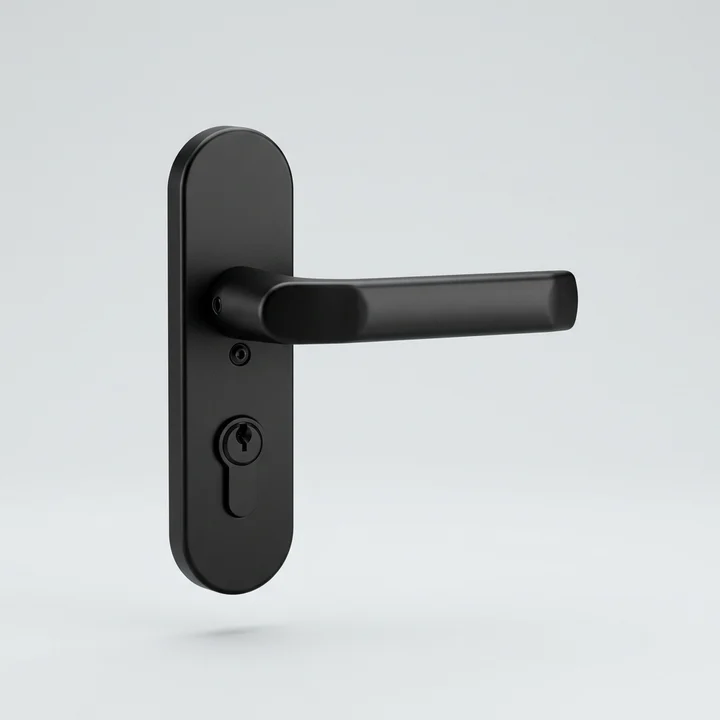

- Black

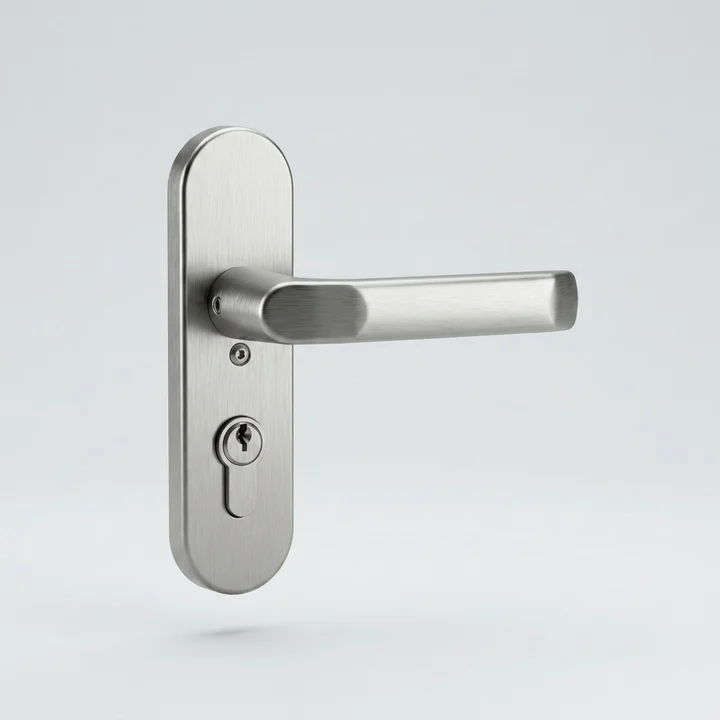

- Chrome

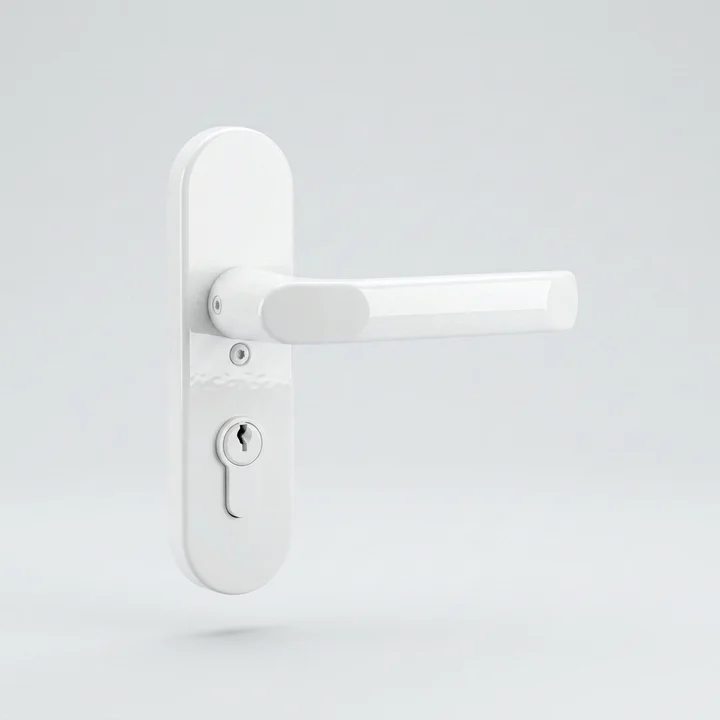

- White
Blinds inside the glass
28mm double glazed and toughened glass as standard, with triple, laminated, acoustic and solar control glass on request. An integral blind can sit inside each panel's glass unit. Tap a colour to change the slats.
White slats
Magnetic
A magnet on the edge of the unit raises, lowers and tilts the slats. Nine stock slat colours, or any RAL colour.
Electric

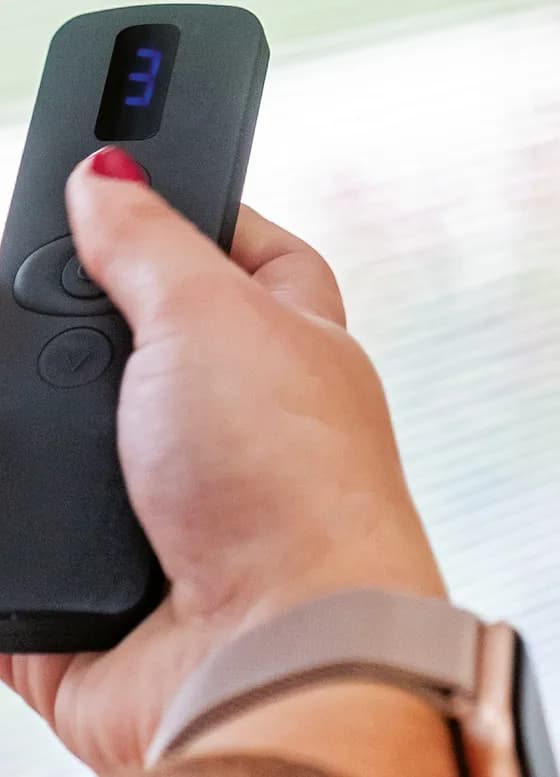

Rechargeable motor and remote control, no wiring to run. A similar range of slat colours, or any RAL colour.
One blind covers glass up to 1500 x 1700mm, or 1200 x 3000mm. Bigger glass takes two blinds side by side in the same unit. Under 300mm high, the slats tilt but do not lift.
Handles, locks and wheels
Fitted on new doors, and stocked at the counter for repairs on doors already in.

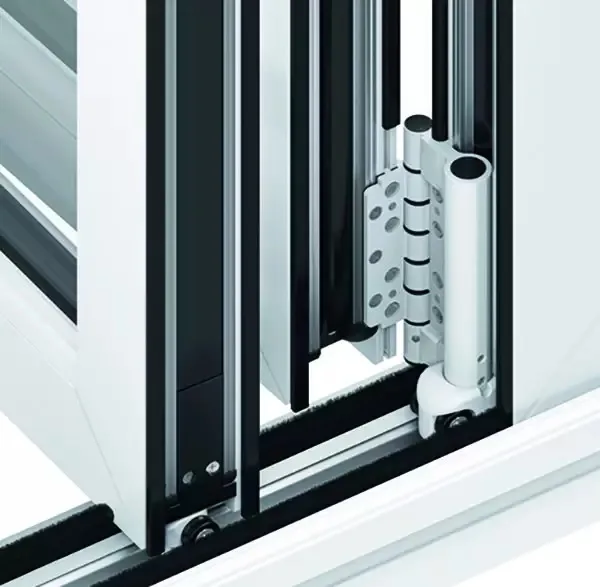

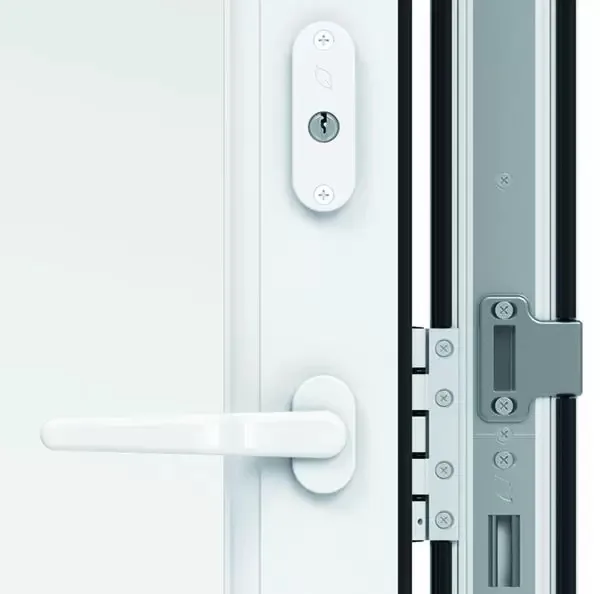

Bi-fold hardware set

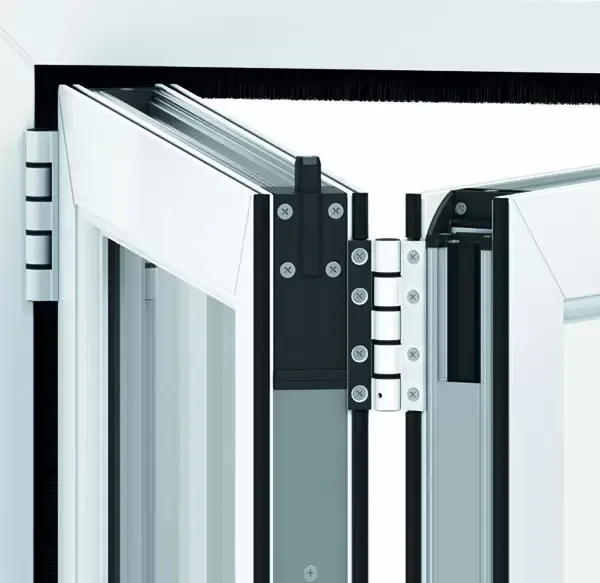

Hinges, carriers, shootbolts and the handle on the main door, finished to match the frame.

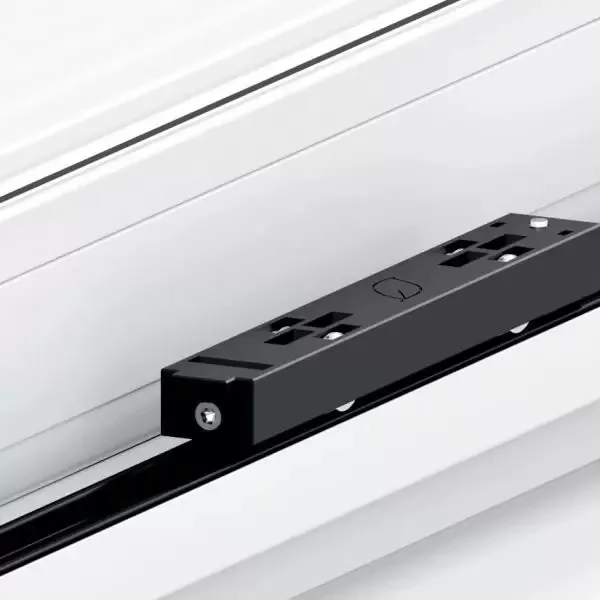

Patio door wheels
Tandem wheels, sold in pairs. Bring the old wheel to match the housing.
220

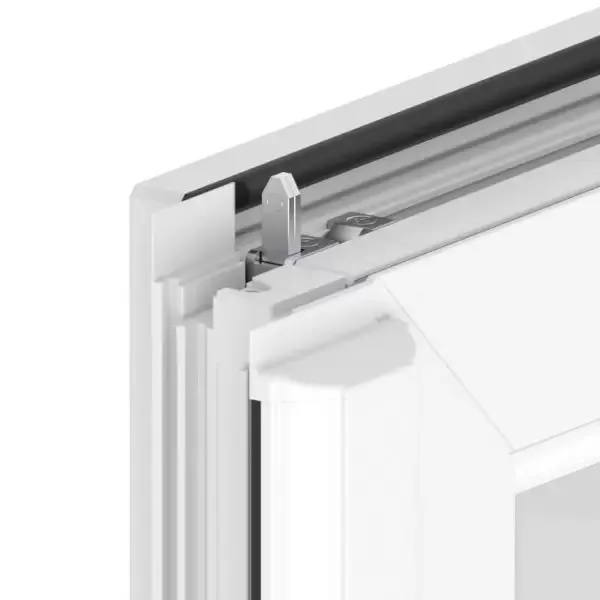

Patio locks and handles
Locks with integral pull, retrofit handles, push locks, lever handles at 155mm centres.
CAL, Fullex
218 · 2181 · 215 · 448WHITE
From opening to doors on site
- 1
Send the opening
Width and height of the opening, aluminium or uPVC, number of panels, which way they fold seen from outside, which panel is the main door, open in or out, threshold, colour inside and out, glass, blinds, cill.
- 2
We confirm the layout
Panel sizes, main door, track count, glass weight and the threshold detail, in writing.
- 3
Order and lead time
Aluminium and uPVC carry different lead times, stated on the quote and held.
- 4
Collect or deliver
Collect from Danes Road, Romford, Mon to Thu 8am to 4pm and Fri 8am to 3pm, with job-waste drop-off included. Local delivery is available subject to order value and location.
Building Regulations
Part M threshold on accessible routes, Part K safety glass, Part L U-value for new openings, Part Q on new build.
Cii trade portal
Lay the bi-fold out panel by panel
Set the panel count, fold direction and threshold in 3D with the customer, see the stack, and quote from it. Free for one user.
Send sizes, get a written quote
Tell us what you fit and what the job needs. The trade desk confirms the specification before anything is ordered.
